China recently successfully caught a first-stage rocket booster at sea using a grid of cables strung between two ships on the very first flight the booster ever made [00:13].
The Recovery Ship and Net System
The Ship and Towers: The recovery ship, named the Navigator, features two mounted towers on its deck with a grid of cables strung tightly between them, creating an opening roughly 54 met
ers on a side [00:36].
Material and Strength: The cables are woven from a specialized fiber that is light enough to float on water while being 10 to 15 times stronger than steel of the same thickness, allowing it to catch tens of thousands of kilograms of falling metal without snapping or sinking [00:52].
Hydraulic Damping and Adjustments: Beneath the net sits a hydraulic damping system desi
gned to absorb the heavy impact similarly to a seat belt at a massive scale [01:18]. Before the booster arrives, the cables can shift position on rails to adjust the net's shape for a cleaner catch [01:34].
The Rocket's Mechanism

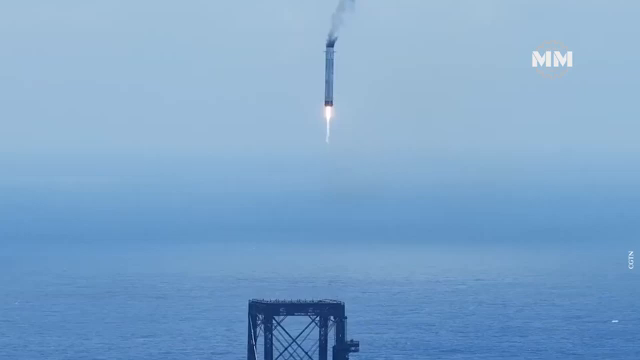

Descent: About six minutes after stage separation, the first stage reignites its engines, flips itself around, and performs a powered descent guided into position d
irectly over the ship's net [01:50].
Capture Hardware: Unlike traditional landing setups that require heavy legs to unfold, the booster is equipped with only four titanium alloy hook-shaped fittings on its inner stage and the section between the first and second stages [02:10].
The Catch: As the booster descends, these four hooks catch the cable grid, and the ship's damping system immediatel
y absorbs the shock to stop the descent [02:30].
Advantages and Trade-Offs
Weight Savings: Traditional landing legs are heavy and reduce the payload capacity of a rocket. Moving the catching hardware to the ship keeps the booster lighter and structurally simpler [03:04].
Target Size: Because the net provides a much larger target area than a narrow landing pad, the system can tolerate greater
positioning errors on the way down, which is especially useful given that the recovery ship sits on open water [03:30].
Logistical Costs: The trade-off requires a managed maritime recovery operation with a ship precisely positioned, followed by a tow back to port before the booster can fly again [03:47].
Current Status and Future Outlook
This successful catch occurred on the booster's maide
n flight [04:20], which is unusual since many recovery systems undergo multiple failures before succeeding. China's stated plan is to refurbish this exact booster and fly it again before the end of the year to prove the economic viability of the reusability program [04:37].
