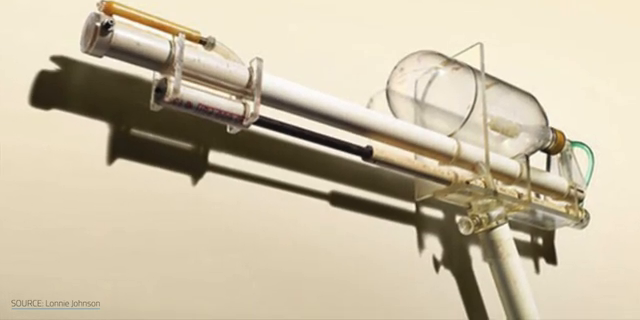

The video, titled "How the Super Soaker Inventor Just Killed the Steam Engine" (published by Matt Ferrell on his channel Undecided), covers a breakthrough in clean energy technology created by Dr. Lonnie Johnson—the famous engineer who invented the Super Soaker toy [1.1.1, 1.2.1].
The title is in English, so this detailed analysis is provided entirely in English
.
The video centers around a novel thermal energy conversion system called the JTEC (Johnson Thermo-Electrochemical Converter) [1.2.1]. It explores how this system tackles the massive global problem of industrial and vehicular waste heat by converting low-grade thermal energy directly into electricity with unprecedented efficiency and no moving parts [1.2.1].
The Core Problem: The Gl
obal Waste Heat Crisis
Traditional mechanical systems like combustion engines, steam turbines, and industrial manufacturing plants dump a catastrophic amount of energy straight into the atmosphere as "waste heat."
========================================================================
TYPICAL INDUSTRIAL ENERGY LOSS
==============================================
==========================
[ Fuel/Input Energy ] ---> ( Useful Work / Mechanical Output ) [~30-40%]
---> [ CRITICAL LOSS: WASTE HEAT ] [~60-70%]
========================================================================
Low-Grade Heat Struggle: While high-temperature exhaust can sometimes be harvested using conventional steam setups, "low-grade" waste heat
(temperatures under 200
∘
C) is incredibly difficult for modern mechanical heat engines to convert efficiently [1.2.1].
The Solution: What is the JTEC?

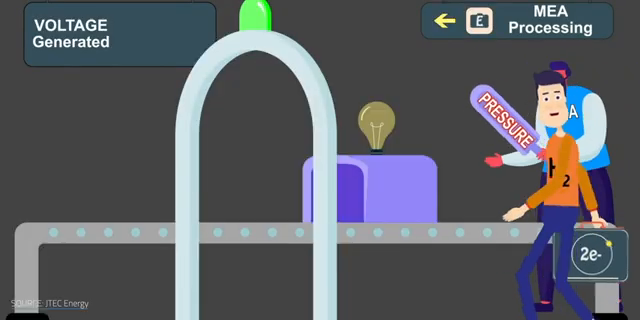

The Johnson Thermo-Electrochemical Converter (JTEC) is a solid-state heat engine that operates similarly to a fuel cell or a reversed battery system but uses heat and gas expansion directly to generate current [1.2.1].
BASIC JTEC WORKING LIFECYCLE
+--------------------------+
| Low-Grade Heat Input |
+-------------+------------+
|
v
[ High-Temp/High-Pressure ] ---> Passes through Hydrogen Membrane
^ |
|
v
Gas Compressing Generates Electricity
| |
+--- [ Low-Temp/Low-Pressure ] <-+
Key Characteristics & Innovations:

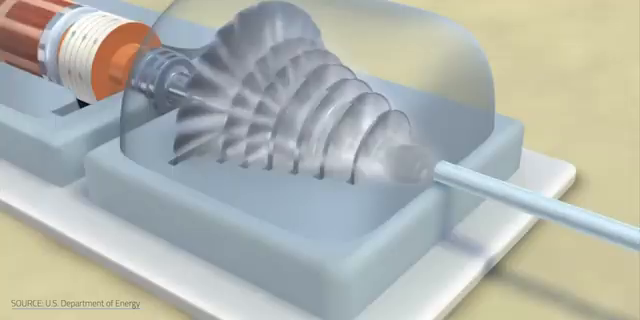

No Moving Parts: Unlike traditional steam turbines or internal combustion engines, the JTEC utilizes no turbines, pistons, or valves. This fundamentally eliminates me
chanical friction, wear-and-tear, and high maintenance costs [1.2.1].
High Efficiency: JTEC operates closer to the theoretical Carnot efficiency limit than almost any other commercial heat-to-electricity converter on the market, especially in the low-temperature threshold [1.2.1].

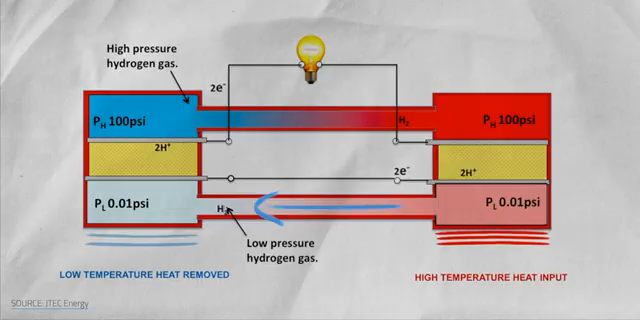

The Hydrogen Cycle: The system works by shifting hydrogen ions across a specialized proton-conducting me
mbrane. Applying heat to one side increases gas pressure, driving ions across the membrane to generate an electric current. Once cooled on the other side, the cycle resets [1.2.1].
About the Inventor: Dr. Lonnie Johnson
While widely famous for inventing the Super Soaker, Dr. Lonnie Johnson is an exceptionally accomplished nuclear engineer and scientist whose contributions span far be
yond toys [1.1.1].
+----------------------------------------------------------------------+
| DR. LONNIE JOHNSON'S LEGACY |
+----------------------------------------------------------------------+
| * Jet Propulsion Laboratory (NASA) - Galileo & Cassini Missions |
| * US Air Force - Developed stealth radar-absorption tiles |
| *
Advanced Energy Innovation - Thin-film lithium-ion battery barriers|
| * Sustainable Tech - Founder of Johnson Electro-Mechanical Systems |
+----------------------------------------------------------------------+
Potential Applications and Scalability
Industry Sector Integration Strategy Expected Impact
Industrial / Factories Capturing exhaust heat from furnaces and machinery [1.2.
1]. Directly powers the localized microgrid, cutting operational overhead [1.1.3].

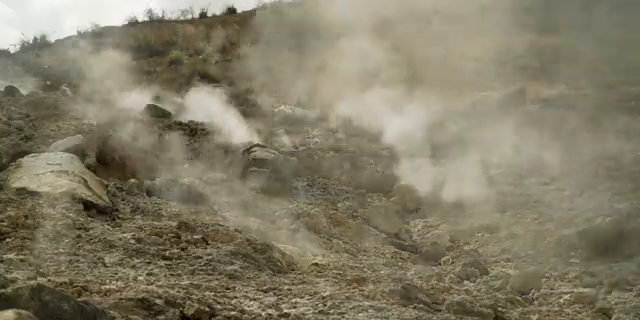

Geothermal Energy Accessing low-temperature geothermal wells [1.2.1]. Unlocks clean baseline power generation in regions previously deemed non-viable.
Automotive Fitting onto vehicle exhaust lines [1.2.1]. Harvests structural heat losses to power onboard electronics, improving MPG/range.
Challenges and F
uture Outlook
Despite its revolutionary promise, Matt Ferrell notes that transitioning JTEC out of lab-scale prototypes and into heavy industrial manufacturing requires overcoming a few notable engineering hurdles:
Material Costs: The specialized membranes and gas-diffusion layers must withstand continuous thermal cycling over decades.
Scaling Up: Scaling the surface area of electro
chemical cells to capture megawatts of industrial heat introduces manufacturing complexities.
The video concludes by framing JTEC as a massive dark-horse contender in the clean energy landscape. If successfully commercialized, it could turn structural waste heat—one of the world's biggest environmental inefficiencies—into a cheap, continuous commodity for the global power grid [1.1.2,
