for a detailed article go here http://goo.gl/7XzQq1 or visit the weldmonger store here http://weldmongerstore.com/ Part of learning Mig welding basics involves knowing mig welding techniques that prevent lack of fusion. With short circuit MIG, lack of fusion, or cold lap is always a concern on anything thicker than 1/8" .125" (3.2m

Here is a detailed breakdown of the MIG welding tutorial video:

Overview

In this video (Part 4 of the MIG welding basics series), Jody from Welding Tips and Tricks focuses on lack of fusion (LOF)—also known as cold lap—and demonstrates techniques to avoid it. He also shares insights from sectioning and etching welds to evaluate penetration, concluding with hi

s participation in the ALS Ice Bucket Challenge.

Key Takeaways & Techniques

The Problem with Inappropriate Techniques:

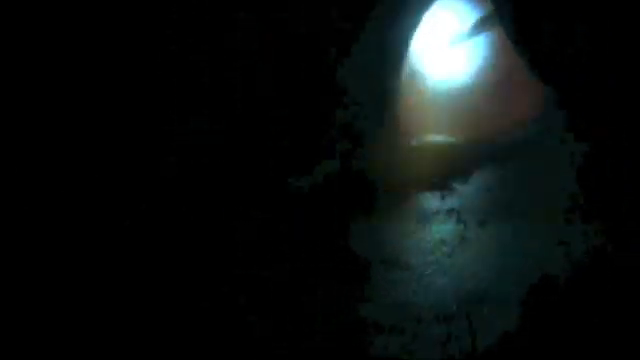

Jody demonstrates a technique he almost never uses [00:22], where the arc is kept on the back of the puddle rather than the leading edge.

This method fails to push heat down into the root of the joint [00:34], causing the metal to merely roll

over and fail to fuse properly [03:04]. This results in a significant notch [03:02] and a drastically reduced cross-section of weld strength [03:04].

Effective MIG Welding Techniques:

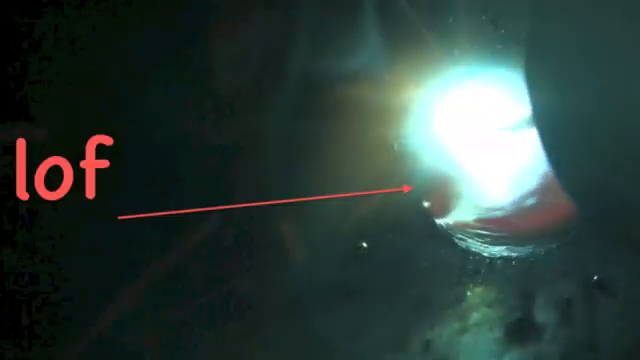

To ensure proper penetration, you must use a technique that traces the front of the puddle, keeping the arc at the leading edge where fusion actually takes place [01:27].

Wheth

er using a forward-tracing motion [01:22] or a straightforward drag technique while maintaining a short stick-out [04:41], keeping the arc focused at the front of the puddle produces a solid weld nugget in the root of the joint [04:51].

Weld Sectioning and Etching Demonstration:

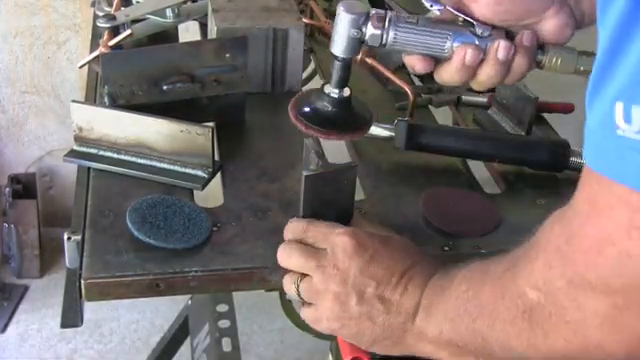

To verify weld quality, Jody sectioned the welded joints, polished them using a 1

00-grit sanding disk followed by red and blue Scotch-Brite pads [01:47], and applied Loctite Naval Jelly as an etcher with an acid brush [02:06].

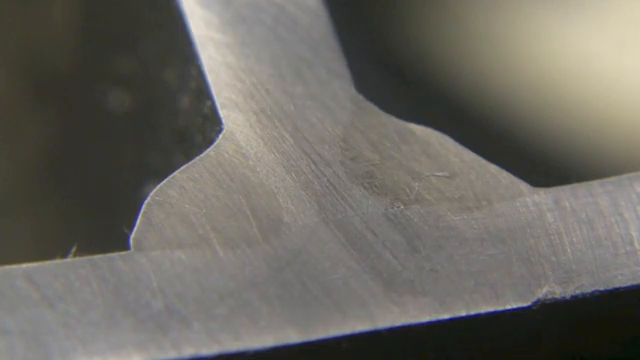

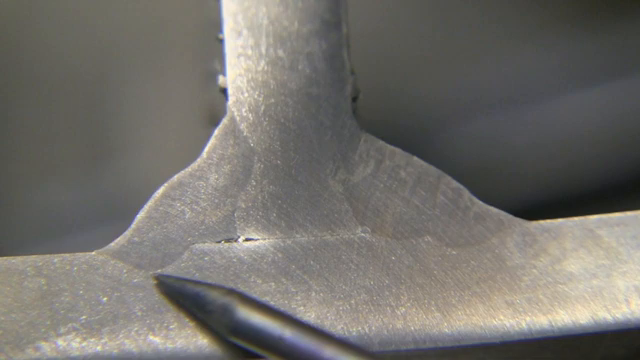

Etching carbon steel reveals the weld nugget contrast within 30 to 60 seconds [02:23], visually exposing the difference in penetration between proper and improper techniques.

While surface aesthetics like "stack of

dimes" appearances are popular, structural integrity must come first; a nice-looking surface with lack of fusion underneath is like a "house of cards" [07:25].

ALS Ice Bucket Challenge Segment

Transitioning toward the end of the video, Jody discusses the ALS Ice Bucket Challenge and Lou Gehrig's famous 1939 farewell speech where he called himself "the luckies

t man on the face of the earth" despite his diagnosis [05:46].

Highlighting the need for research funding, Jody makes his donation and pours ice water on his head, nominating Brent Williams, Jimmy DiResta, and Mike Rowe [06:14].

https://www.youtube.com/watch?v=lSNXTgmNbxk
