Here is a detailed breakdown of the content in the video "Primitive Technology: Flywheel blower smelt/Monsoon begins":
1. Blower Upgrade & Charcoal Production [00:00]

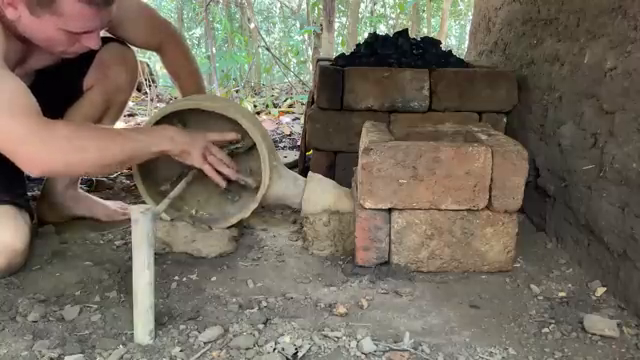

Flywheel Addition: The existing one-way spinning blower is upgraded by attaching a clay flywheel (originally from a fire-starting device) to the rotor [00:11]. The flywheel requ
ires more force to start spinning, but once operational, it helps maintain a high, constant rotational speed [00:20].

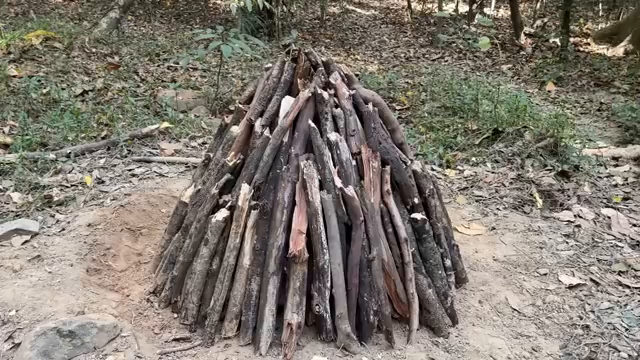

Charcoal Mound Construction: Dead wood is collected from the forest [00:28] and broken into pieces [00:40]. A 1m wide by 75cm tall pile is built with tightly packed logs [01:45].

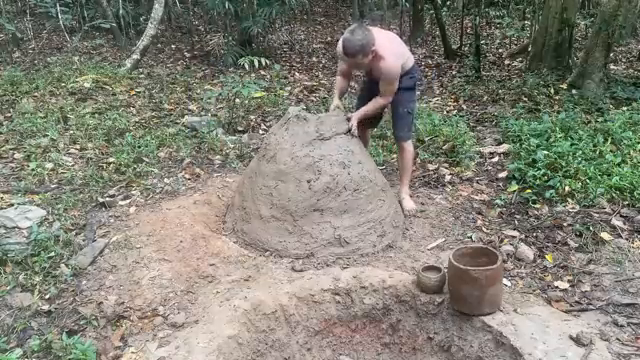

Sealing & Firing: Slaked mud is dusted with dry

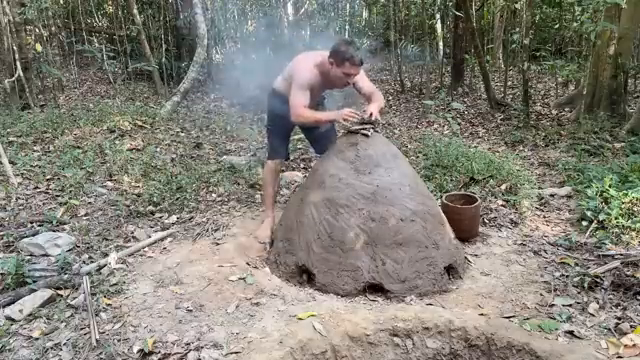

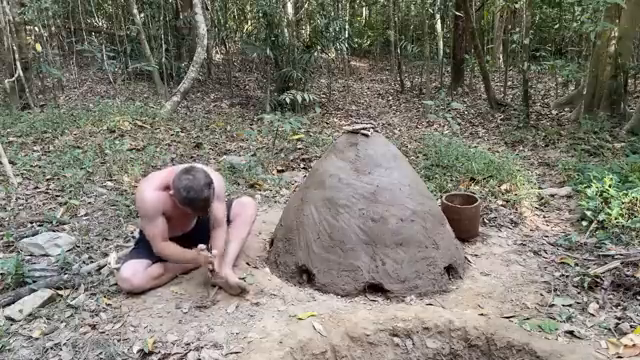

dirt on one side so it doesn't stick to the wood [02:12]. The mound is covered in layers, leaving one exit hole at the top and eight air intake holes around the base [03:06]. Fire is started by friction [03:47] and kindled into the top hole [05:00].

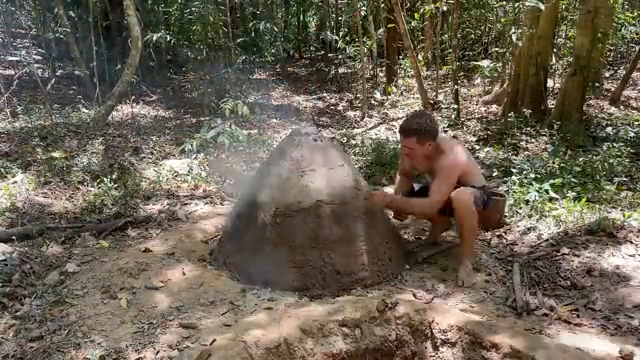

Carbonization Process: The fire burns downward, boiling off volatiles to leave pure carbon fu
el [05:10]. As the fire reaches the bottom entries, all holes and cracks are plugged to suffocate the fire [05:28]. Water is thrown over the mound for cooling [06:08].

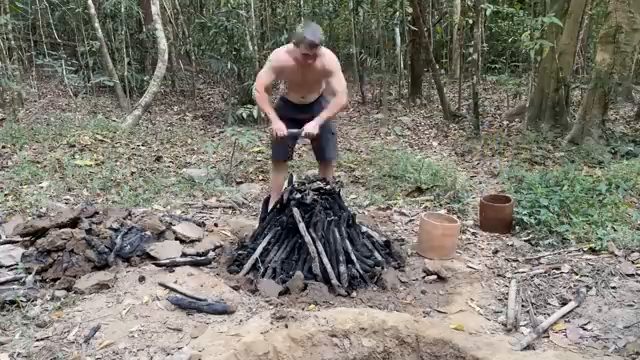

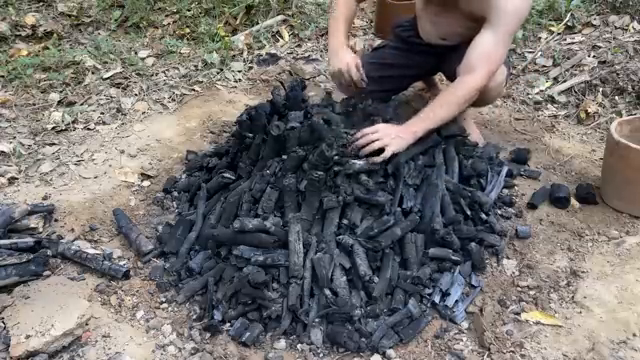

Yield: The next day, 13 pots of high-quality, glossy charcoal are recovered, with minimal unburnt wood or over-burnt ash [08:08].
2. The First Smelt Trial (Tall Furnace) [08:36
]

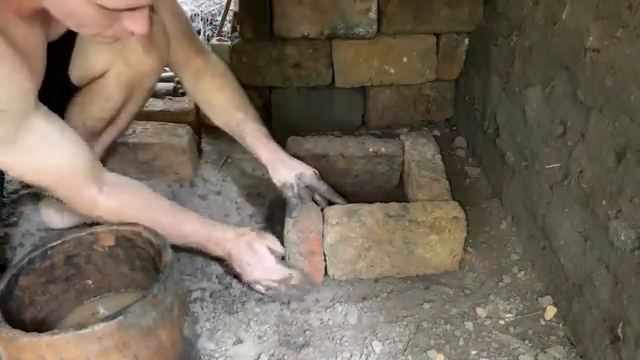

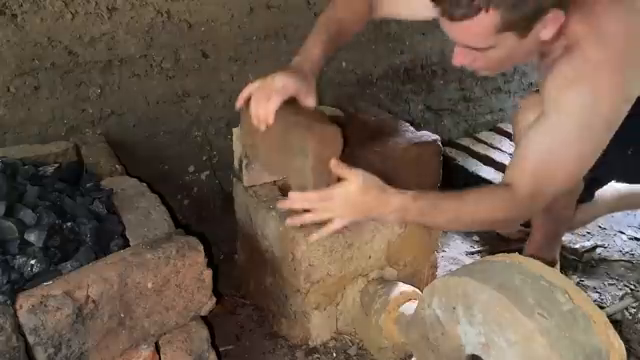

Furnace Setup: A 1.25m tall furnace is built using fired bricks laid on their sides [08:50]. A clay tuyere is installed, protruding 2.5 cm into the interior so air flows through the center of the charcoal bed rather than straight up the walls [09:26].

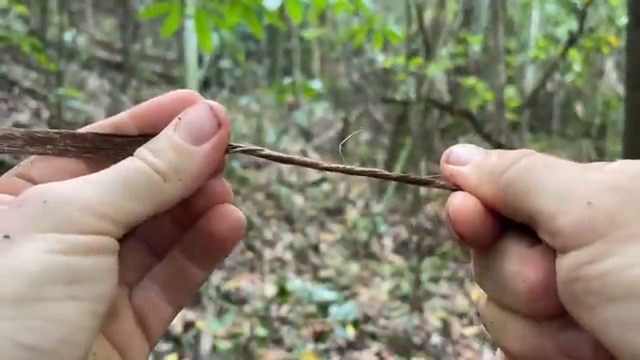

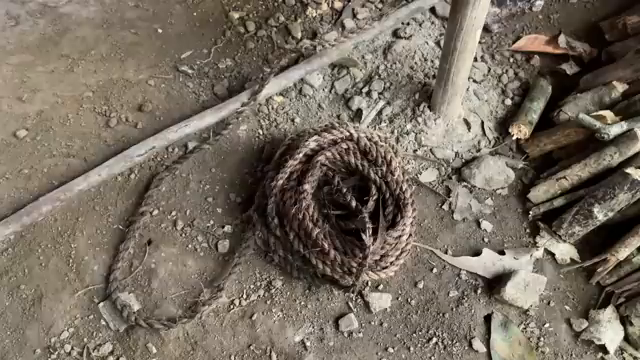

String Making: Cordage for the blower is made by twisting inner bark fiber clockwise indep
endently, then counter-clockwise together [14:08]. The new one-way blower layout reduces string wear by 80% compared to previous designs [14:37].
Pre-loading Strategy: Instead of adding materials incrementally, the entire batch of fuel and ore is pre-loaded before starting [17:33]. The stack consists of 9 double handfuls of charcoal and 2 sin
gle handfuls of iron bacteria sludge ore, followed by 12 more sequential layers [17:50]. This allows continuous blowing without stopping every 5–7 minutes to recharge [18:05].

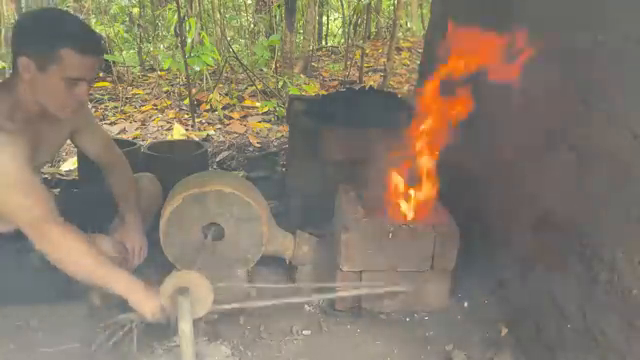

Operation & Results: The furnace is blown for 3 hours [18:55]. However, the rotor repeatedly slips out of its shallow pit bearings, causing the fan to stall [19:28]. Th

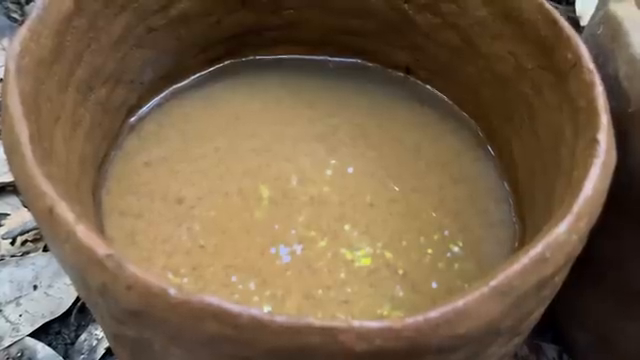

e resulting slag/iron mass yields an average, disappointingly small amount of iron prills, which are separated by crushing [21:08] and water panning [21:44].
3. Engineering Improvements [22:53]
To fix the unstable thrust bearings, the system is redesigned with a Journal Bearing system where the pivot holes pass completely through the support
stakes [23:10].
THRUST BEARING (Old/Unstable) JOURNAL BEARING (New/Stable)
[Stake] [Rotor] [Stake] [Rotor]
| ___|==== ====|__|_|========|__|_|====
| | | | | |
| |<- Shallow Pit | |
| |
^-------------^
Holes drilled straight through
The ends of the rotor are narrowed to prevent horizontal shifting, keeping the fan perfectly centered within its housing [23:32]. Due to the difficulty of digging out the furnace door each time, the d
esign is reverted back to a shorter furnace architecture that allows product access from the top [24:17].
4. The Monsoon Season & Hut Repairs [26:10]
Storm Impact: Before the new setup can be tested, the monsoon season arrives. Heavy rain lasts for over a week, turning the nearby creek into a roaring river [26:59]. Wet, humid conditions rot t
he thatched roof of the A-frame workshop and promote mold growth [27:12].
Mitigation (3rd Wall): To stop groundwater from splashing into the open-plan tiled hut, a 50cm tall third wall is constructed using fired bricks and clay mortar [27:50]. Half-bricks are used every second layer to stagger the joints for structural stability [28:47].
Roof
Maintenance: Slipping roof tiles (caused by a rotting bark purlin) are replaced using salvaged tiles from a previously destroyed hut [30:07]. Broken tile fragments (sherds) are wedged under the new tiles to prop them up and prevent future sliding [30:56].
5. Monsoon Science Experiment: The Counter-Intuitive Water Wheel [31:25]
During the con
tinuous downpour, a unique toy/mechanism is built and placed on parallel tracks over a flowing stream of rainwater [31:32].
Due to its design, the water wheel acts as a "locomotive" that rolls uphill against the direction of the water flow [31:32]. The narrowed ends of the rotor axel keep it self-centering on the tracks; if one side begins to
veer off-track, the effective diameter narrows, slowing that side down until the vehicle self-corrects [32:22].
The video concludes with the improved blower safely housed inside the modified hut, awaiting drier weather for future smelting projects [32:44].
