This video from Rainman Ray's Repairs titled "This is why Mechanics charge for Diagnostics! Car Battery Keeps Dying!" details the challenging and time-consuming process of tracking down a parasitic battery drain on a 2012 Chevrolet Traverse.

The Problem: Parasitic Battery Drain

The Symptom: The customer replaced the battery, but the new battery still went completely dead overnight [00:43].

The

Frustration: Parasitic draws happen when an electrical component, module, or short circuit fails to power down when the vehicle is turned off, slowly depleting the battery over 24 to 48 hours [00:23]. Mechanics often dislike doing these tests because they are methodical, time-consuming, and require hours of observation [03:22].

Diagnostic Setup & Testing Steps

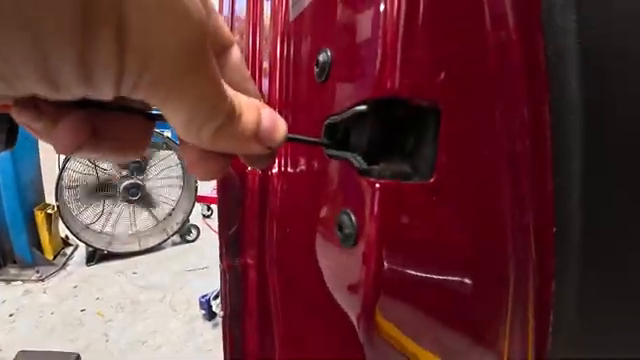

Tricking the Vehicle: To prevent

doors, chimes, and lights from turning on while entering and exiting, Ray manually latches the door mechanisms so the body control module (BCM) believes all the doors are safely closed [07:32].

Connecting the Multimeter: A multimeter is connected in-line with the negative battery terminal to measure the amperage (current) flowing out of the battery while the vehicle is in a shutdown, hibernat

ing state [05:22].

Normal parasitic draw usually ranges between 30 to 500 milliamps depending on the vehicle and active modules (like remote lock receivers or telematics) [06:04].

Eliminating Aftermarket Accessories: Ray notes that aftermarket additions—such as a plug-in OBD2 device and a dashcam—must be unplugged during testing, as the dashcam alone was drawing around 100 milliamps [19:21].

iscovering the Culprit

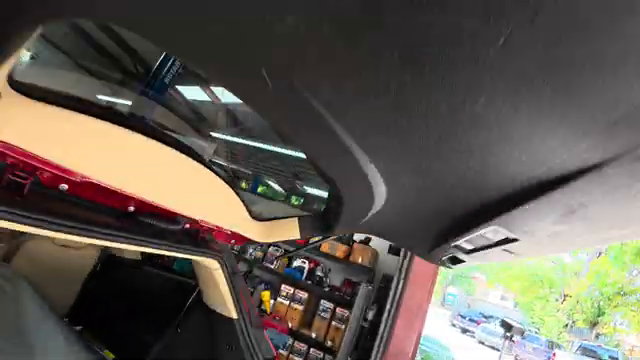

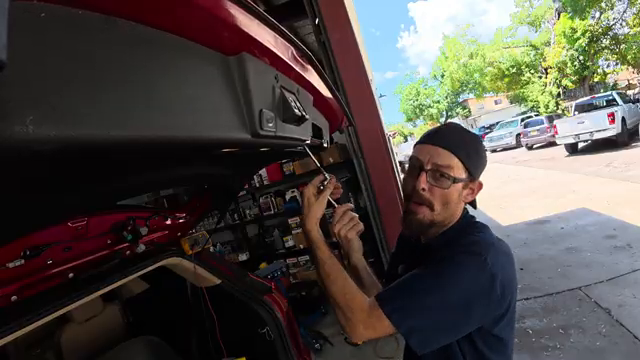

The Rear Wiper Motor: Ray notices that the rear windshield wiper motor attempts to move or park incorrectly every time power is restored [14:03]. Upon further investigation, the rear wiper motor's internal logic board fails to park properly, causing intermittent power draws [48:12].

The HVAC Actuator: The vehicle also suffers from a clicking blend door actuator for the h

eating and air conditioning system, which fails to report its position to the control module and continuously runs the small electric motor, further contributing to power loss [57:12].

The Conclusion and Solution

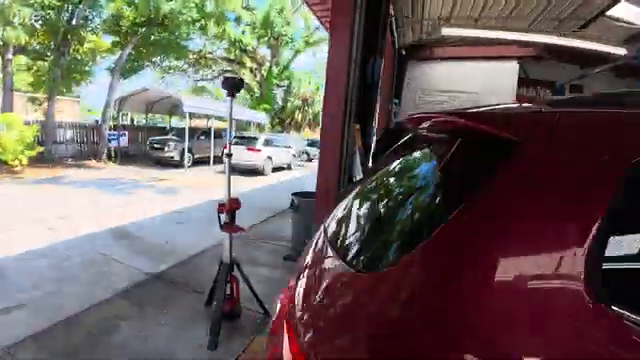

Long-Term Testing: After disconnecting the faulty rear wiper motor and replacing the clicking HVAC actuator, Ray leaves the car over a multi-day weekend to monitor battery voltage [53

:15].

Results: Over roughly 2.5 days, the battery voltage only dropped slightly from 12.76V down to 12.52V, confirming that the parasitic draw was successfully resolved through methodical diagnosis rather than guessing with a "parts cannon" [53:44].
